产品特色

◆ 手持式彩色按键盘，工作稳定、可靠，配合高精度的移位传感器，使打包重量精确可控。
◆ 操作系统简单易学，自动和人工两种模式可供选择：打捆过程全程监控，设备运行一目了然。
◆ 高精度传感器精确定位缠网圈数，合理控制成本。
◆ 全自动稀油润滑装置，保证整机链条传动系统流程运行，延长使用寿命，干油润滑点采用集中供用方式，减少维护时间。
◆ 液压调节捡拾高度，具有一定的浮动能力，自动适用通过的作物流，方便清理维护。整机传动轴、轴承、离合器、链条、电控等关键部件全球采购，由国际大品牌提供，确保整机质量。

产品特点

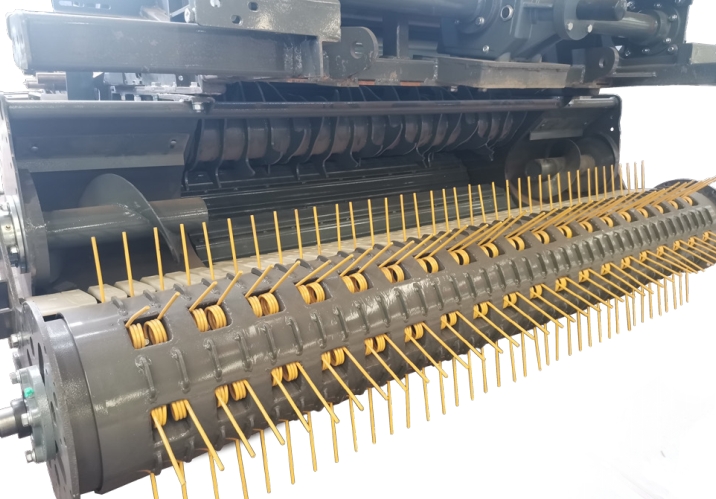

◆捡拾喂入系统，捡拾滚筒采用双轴无凸轮结构，高效可靠。无护圈设计，安装更换弹齿方便快捷。压草辊主动旋转并增加至 3 根，六排弹齿结构，喂入速递更快。喂入螺旋轴加粗并使用四口轴承固定，同时增加防尘罩，明显降低损坏频次。

◆ 传动加强，整机所有传动轴均采用 35CrMo 材质，强度增加、作业可靠。压缩室链条采用名优 20AH 链条，运行平稳，实用高效，受力比较大的链条，均采用双链条设计，使设备更加稳定，减少故障率。

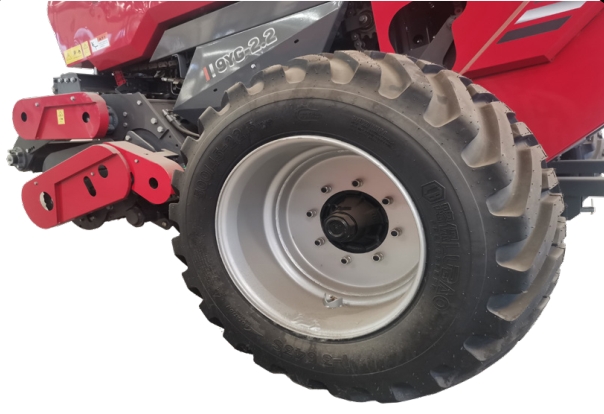

◆ 行走系统，使用启航 500/45-22.5 型草地专用轮胎，接地面积大，水田作业有保障。接盘式后桥离地间隙宽窄可调，更好提高通过性。

产品展示

     Handheld color keyboard, stable and reliable in operation, combined with high-precision displacement sensors, ensures precise and controllable packaging weight.
     The operating system is simple and easy to learn, with two modes to choose from: automatic and manual: theentirebundlingprocess is monitored, and the equipment operation is clear at a glance.
     High precision sensors accurately locate the number of entangled nets and control costs reasonably.
     The fully automatic thin oil lubrication device ensures the operation of the entire chain transmission system process, extends the service life, and adopts a centralized supply method for dry oil lubrication points to reduce maintenance time.
     Hydraulic adjustment of picking height, with certain floating ability, automatically suitable for passing logistics, convenient for cleaning and maintenance. Global procurement of key components such as transmission shafts, bearings, clutches, chains,
andelectroniccontrols for the entire machine, provided by international major brands, ensuring the quality of the entire machine.

     The picking drum adopts a dual axis camless structure, which is efficient and reliable. No protective ring design, easy and fast installation and replacement of spring teeth. The grass roller actively rotates and increases to 3, with a six row tooth structure for faster feeding. Thicken the screw shaft and fix it with four port bearings, while adding a dust cover, significantly reducing the frequency of damage.

     All transmission shafts of the whole machine are made of 35CrMo material, which increases strength and ensures
reliable operation. The compression chamber chain adopts the famous 20AH chain, which runs smoothly, is practical and efficient. The chains with high stress are all designed with double chains, making the equipment more stable and reducing the failure rate.

     Using Qihang 500/45-22.5 grassland specific tires, with a large grounding area, ensures safe operation in paddy fields.
The width of the ground clearance of the disc type rear axle can be adjusted to better improve the passability.
